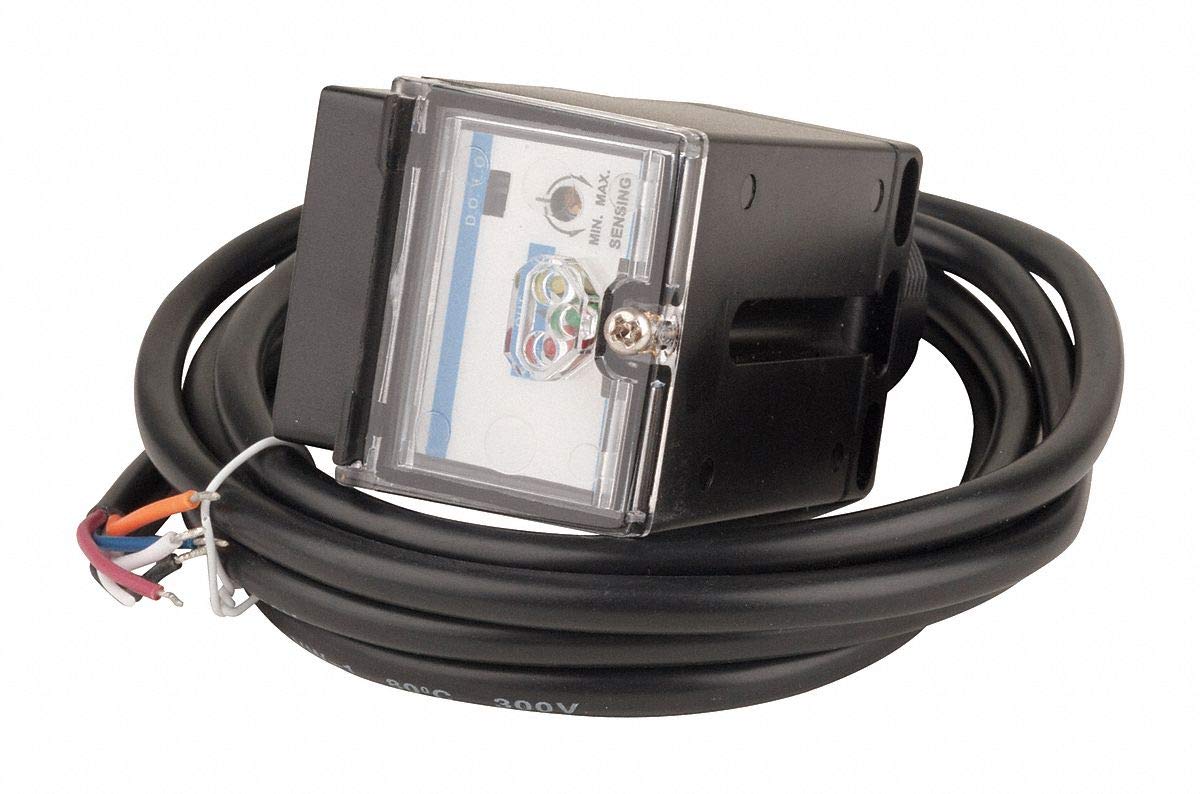

Eaton 88mm Selectable Light On/Dark On Rectangular Photoelectric Sensor - Diffuse Sensing Method for Industrial Automation & Packaging Equipment

This thru-beam sensor transmits infrared and visible red light between its source and detector on opposite sides of a detection zone. The switch will actuate when this beam of light is either blocked (when set for dark operation), or completed (light operation). Style - Rectangular Photoelectric Sensor: Rectangular Photoelectric Sensor Item: Photoelectric Sensor Shape - Rectangular Photoelectric Sensor: Rectangular Sensing Method - Rectangular Photoelectric Sensor: Diffuse Power Requirement - Rectangular Photoelectric Sensor: 24 to 240VAC/12 to 240VDC Output Circuit Type - Rectangular Photoelectric Sensor: SPDT Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On Max. Sensing Distance - Rectangular Photoelectric Sensor: 3.0m Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable Height - Rectangular Photoelectric Sensor: 88mm Width - Rectangular Photoelectric Sensor: 46mm Depth - Rectangular Photoelectric Sensor: 48mm Min. Object Size: Adjustable By Changing Gain Max. Load Current: 3A Response Time: 15.0 msec Operating Frequency: 33 Hz NEMA Rating: 1, 2, 3, 4, 4X, 6, 12, 13 IP Rating: 67 Body Material: Fiberglass Reinforced Plastic Light Source: Infrared LED Features: Output Short Circuit, Overcurrent and Reverse Polarity Protection Operating Temp. Range: -25 Degrees to 55 Degrees C Standards: UL 508 Listed, CSA Certified, CE Approval
